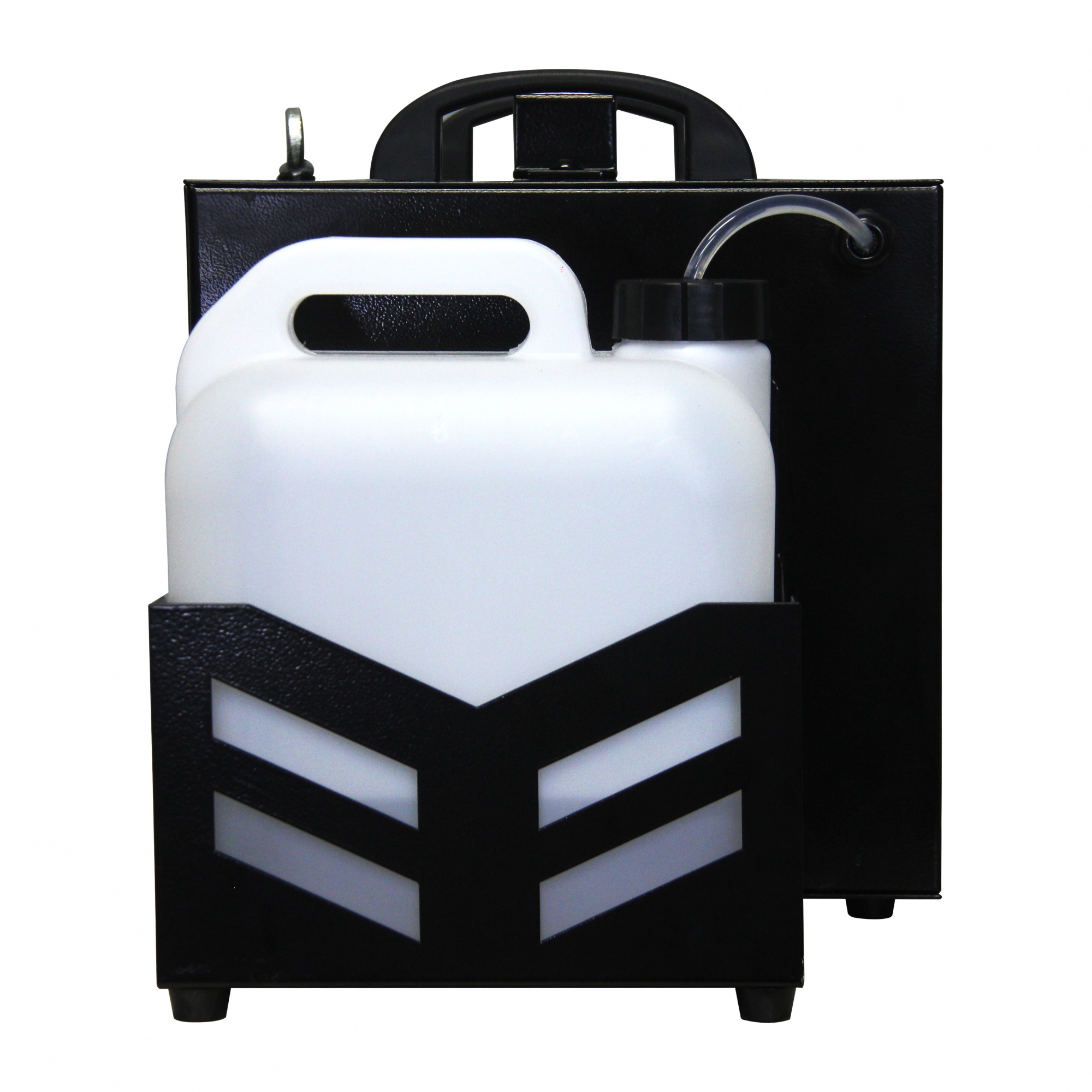

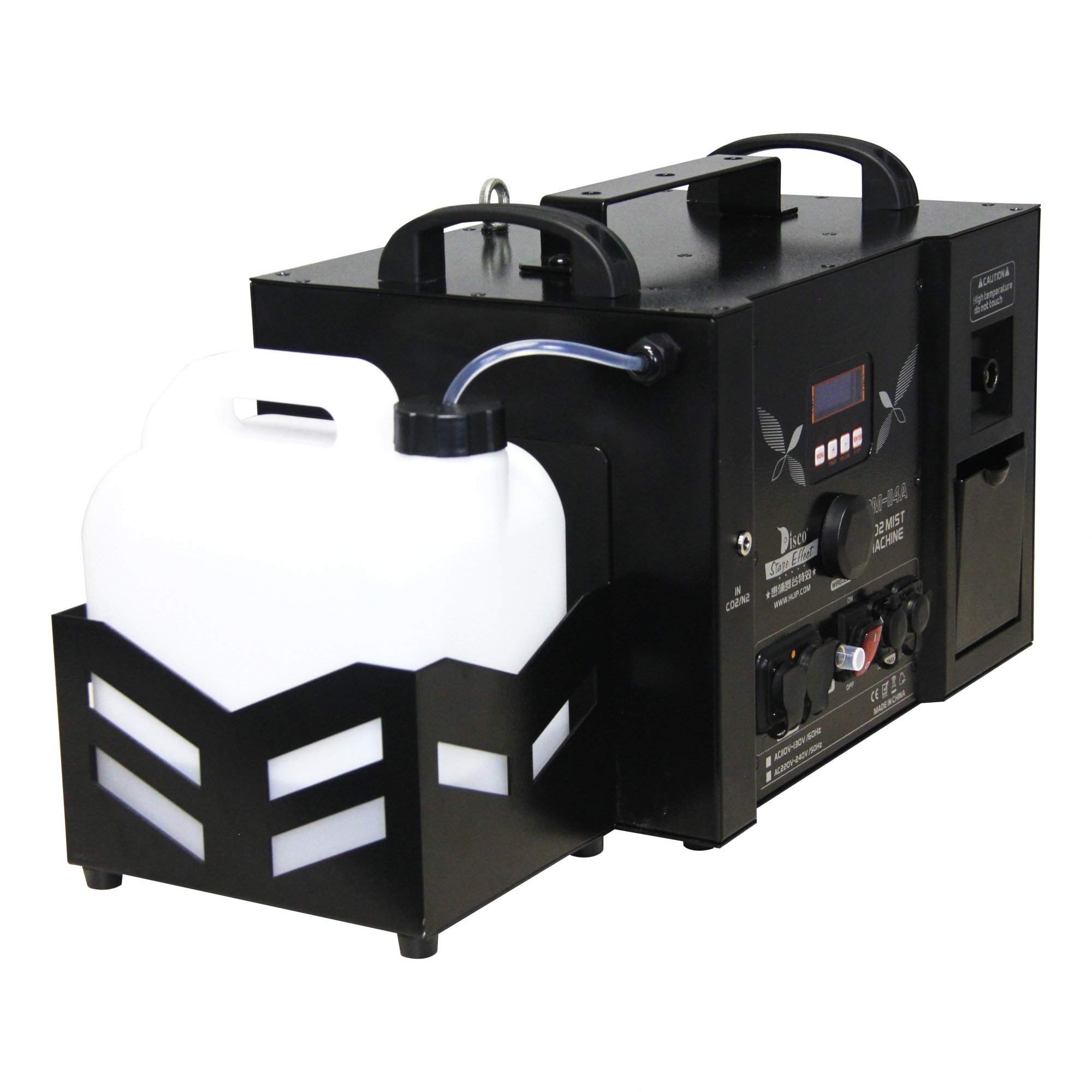

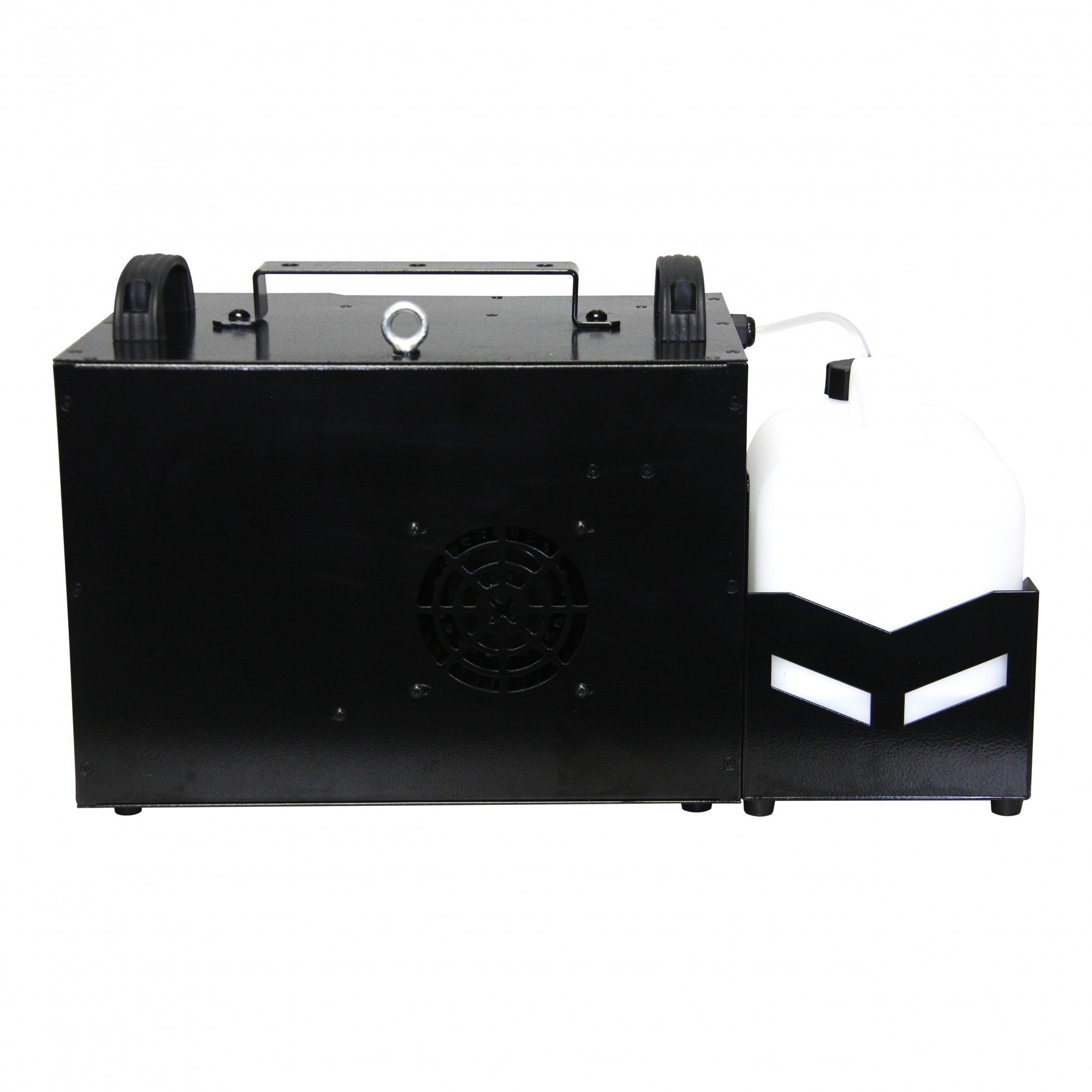

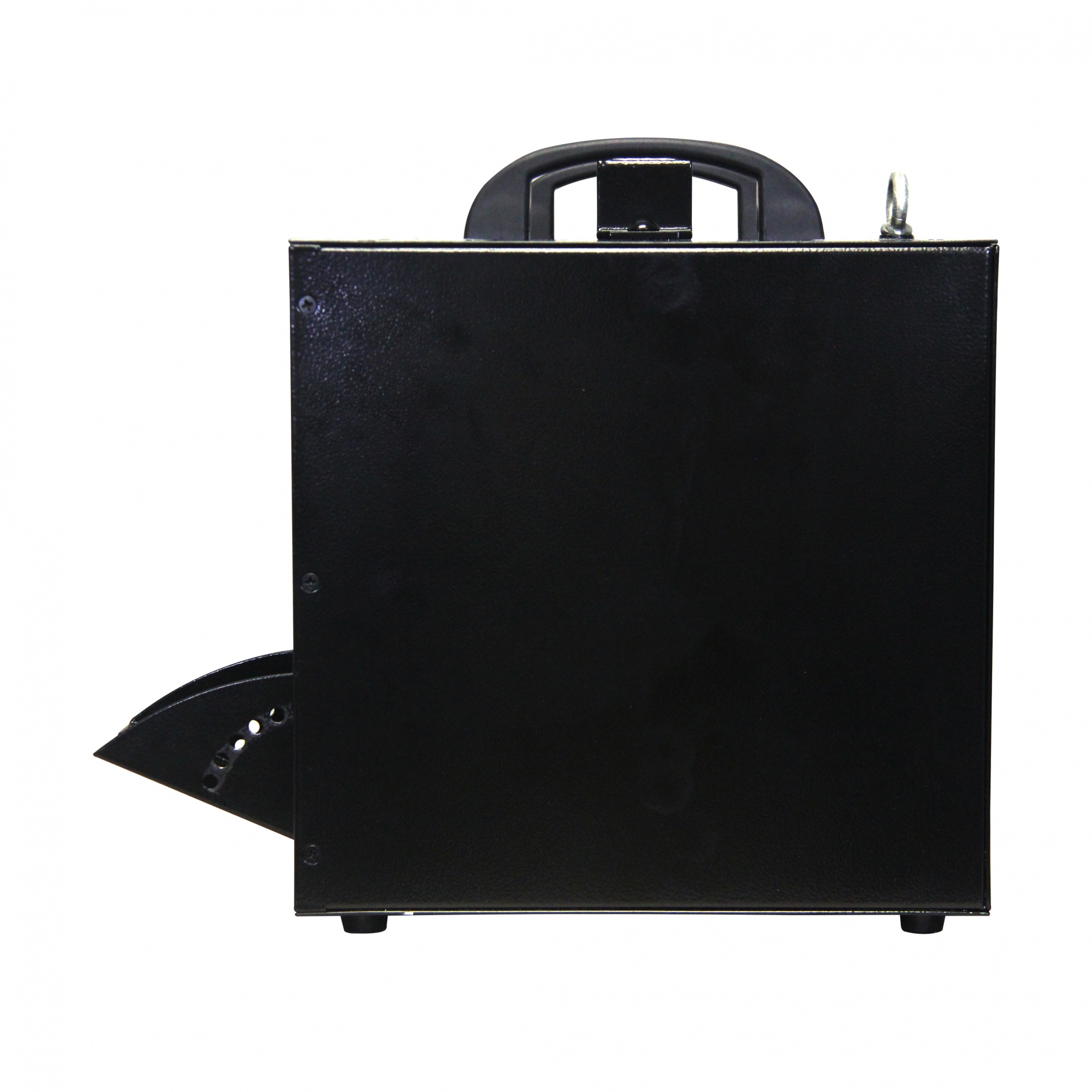

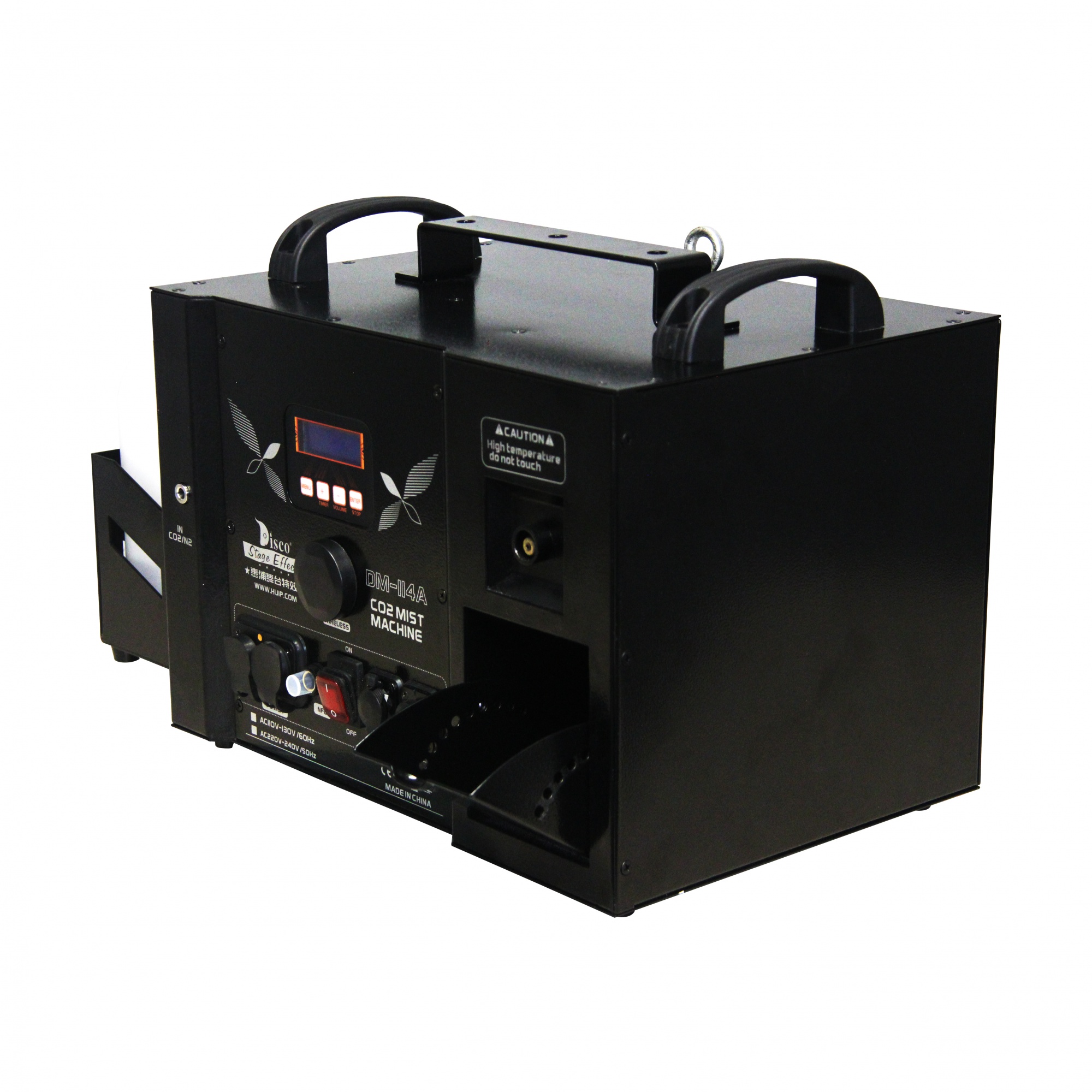

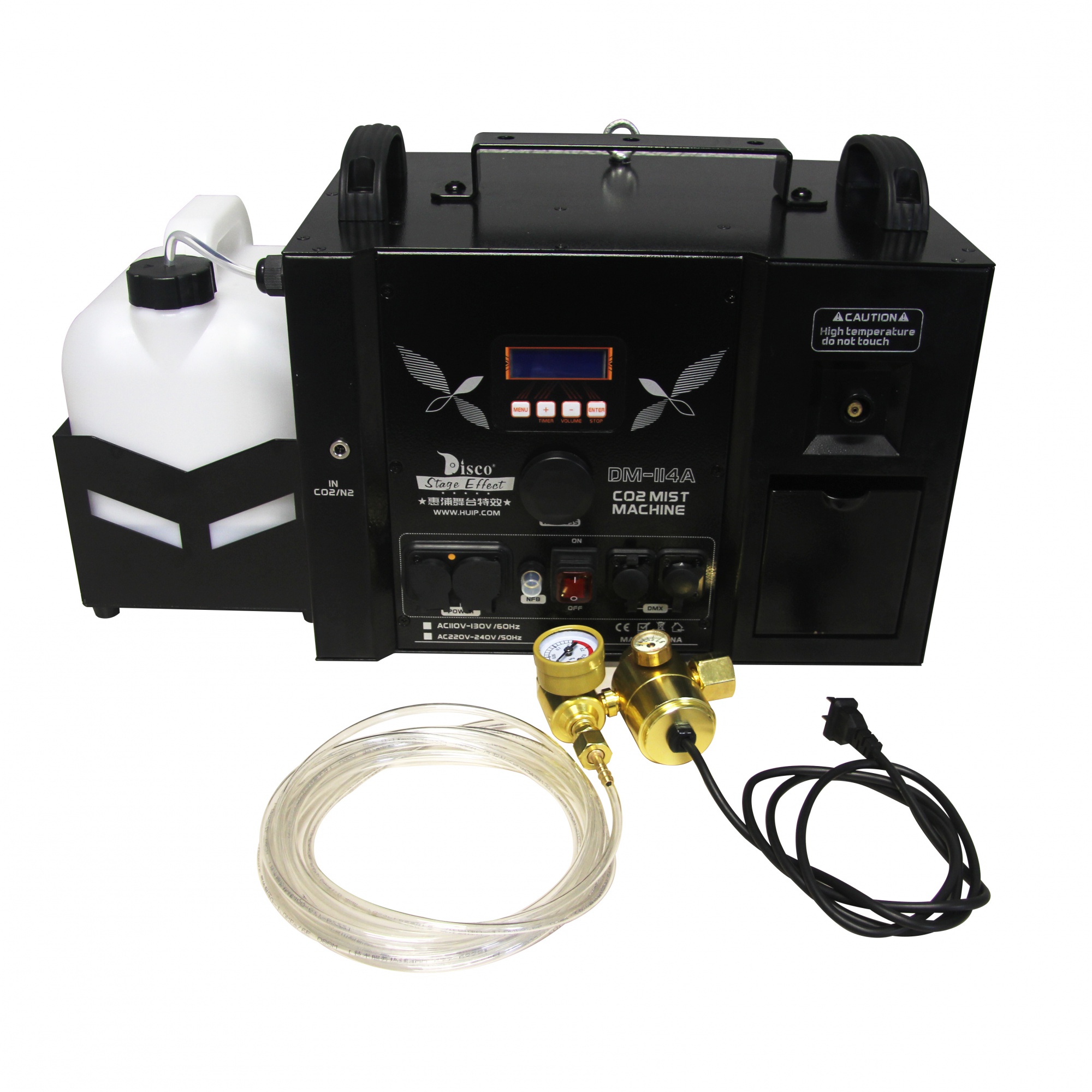

Co2 particle haze machine
Model: DM-114A
Voltage: AC110-130V/60Hz AC220-240V/50Hz
Power: 1500
Preheating time: 6 minutes or more
Haze output: 100% output
Oil consumption: about 123min/L @0.12Mpa
Maximum coverage area: about 150 ㎡/min
Haze oil capacity: 5L
Control channel: 3 channels
Control: DMX/remote control/panel
Machine size: 576x286x320mm (LxWxH)
Packaging size: 630x320x350mm
N.W: 19kg
G.W: 23kg
- Parameters
Model: DM-114A
Voltage: AC110-130V/60Hz AC220-240V/50Hz
Power: 1500
Preheating time: 6 minutes or more
Haze output: 100% output
Oil consumption: about 123min/L @0.12Mpa
Maximum coverage area: about 150 ㎡/min
Haze oil capacity: 5L
Control channel: 3 channels
Control: DMX/remote control/panel
Machine size: 576x286x320mm (LxWxH)
Packaging size: 630x320x350mm
N.W: 19kg
G.W: 23kg
The CO2 particle explosion haze machine is a full-dimensional innovation based on the traditional haze machine! It has a breakthrough in perfectly integrating CO2/nitrogen with special haze oil through precise pneumatic pipelines and oil circuits, and then atomizes instantly through a high-power heater to form crystal clear and delicate haze.
Different from the limitations of traditional haze machines, which have short duration, weak layering and three-dimensional effects, the haze output by this carbon dioxide particle explosion haze machine is white and lasting, stays in the air for a long time, and has strong haze penetration, which will not block the line of sight, but can outline a clear light column trajectory in the light or laser beam. It has the characteristics of extreme energy saving and long-term operation, and the consumption of haze oil and gas is extremely low, and one filling can meet the needs of long-term performances.
In terms of intelligent protection, it is equipped with an oil-free protection function, which can monitor the flow in real time and automatically cut off the power to protect the oil pump when there is no oil. It also has a built-in automatic cleaning system that can automatically remove pipeline residues, eliminate blockage hazards from the root, and make equipment maintenance easier. The built-in high-power turbo fan can evenly and quickly spread the haze to every corner of the stage without the assistance of an external fan. The haze effect covers very quickly, and a three-dimensional light and shadow field can be formed as soon as the lights are turned on.
Whether it is the psychedelic atmosphere of a bar, the stunning light beams of a concert, or the romantic halo of a wedding scene, the carbon dioxide particle haze machine has become a standard tool for lighting engineers and scene designers with its core advantages of 'transparent haze effect + light and shadow enhancement', turning every performance into an eye-catching visual feast.
