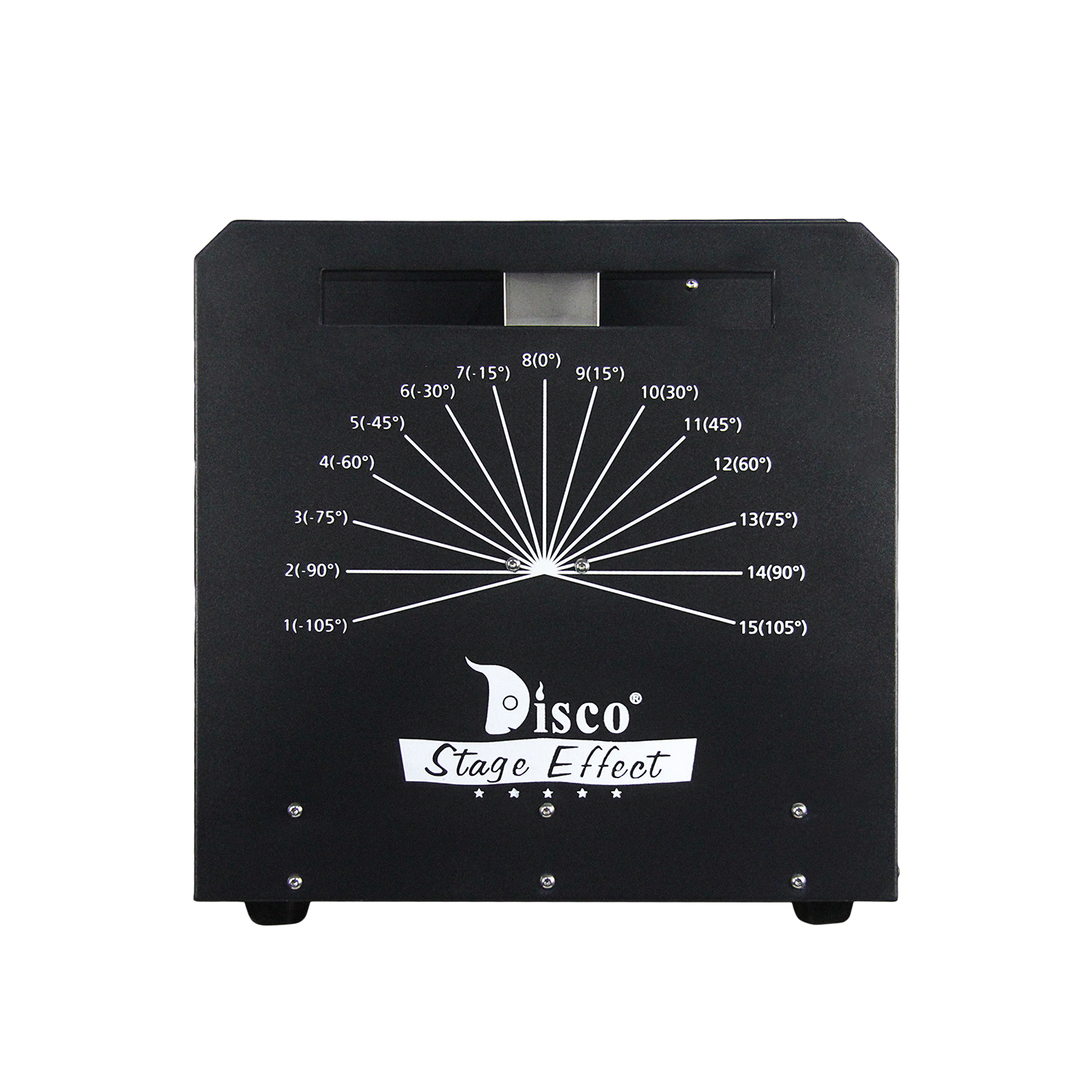

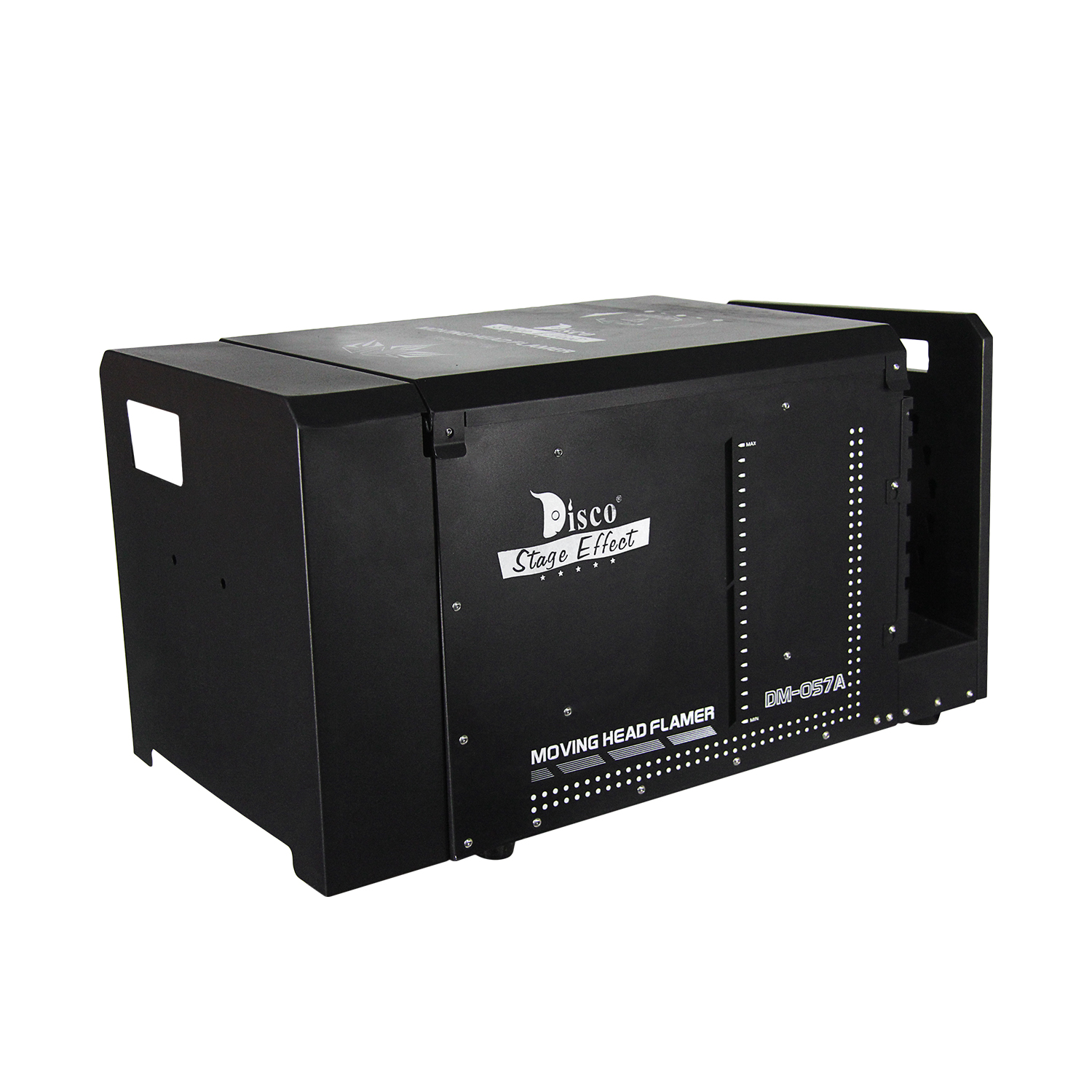

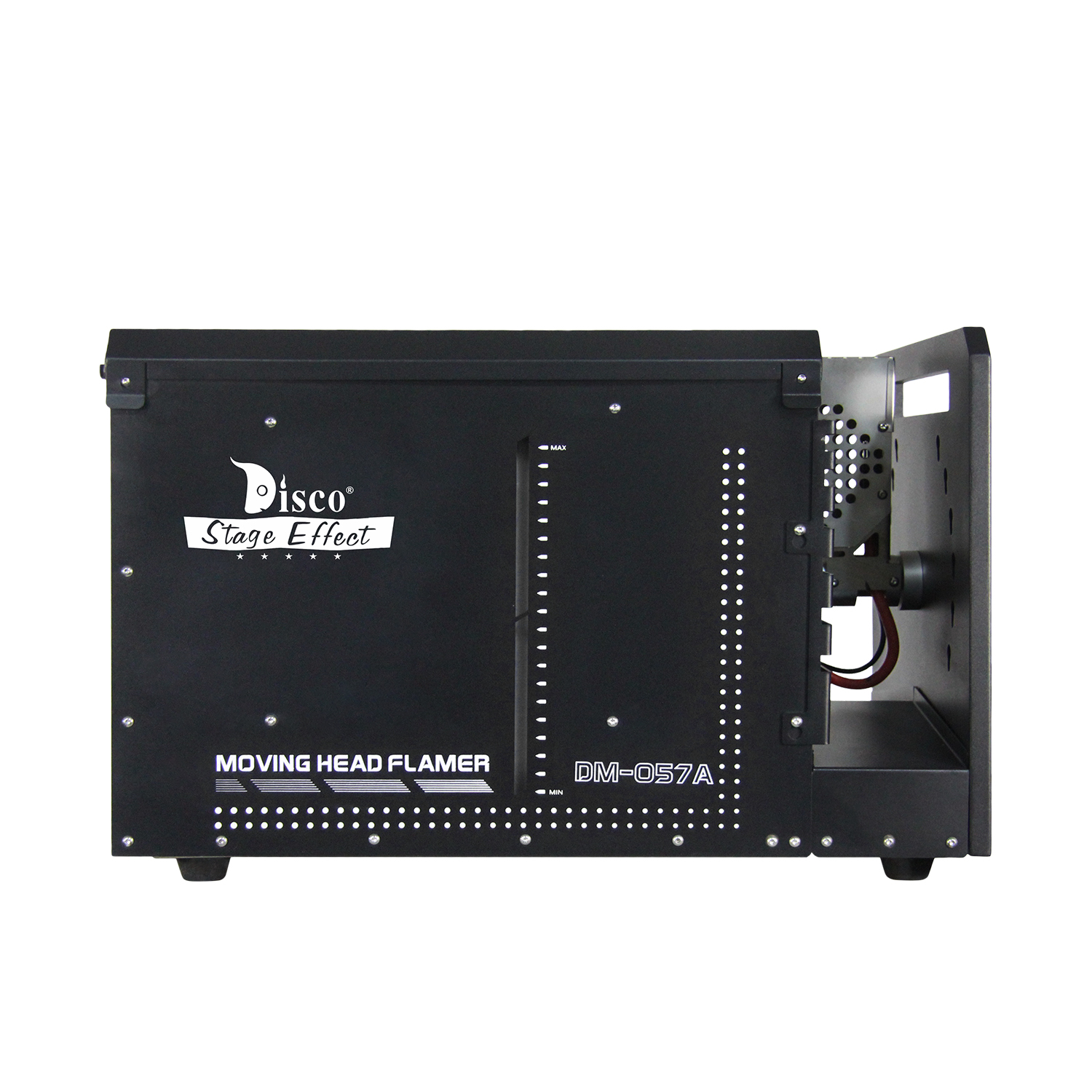

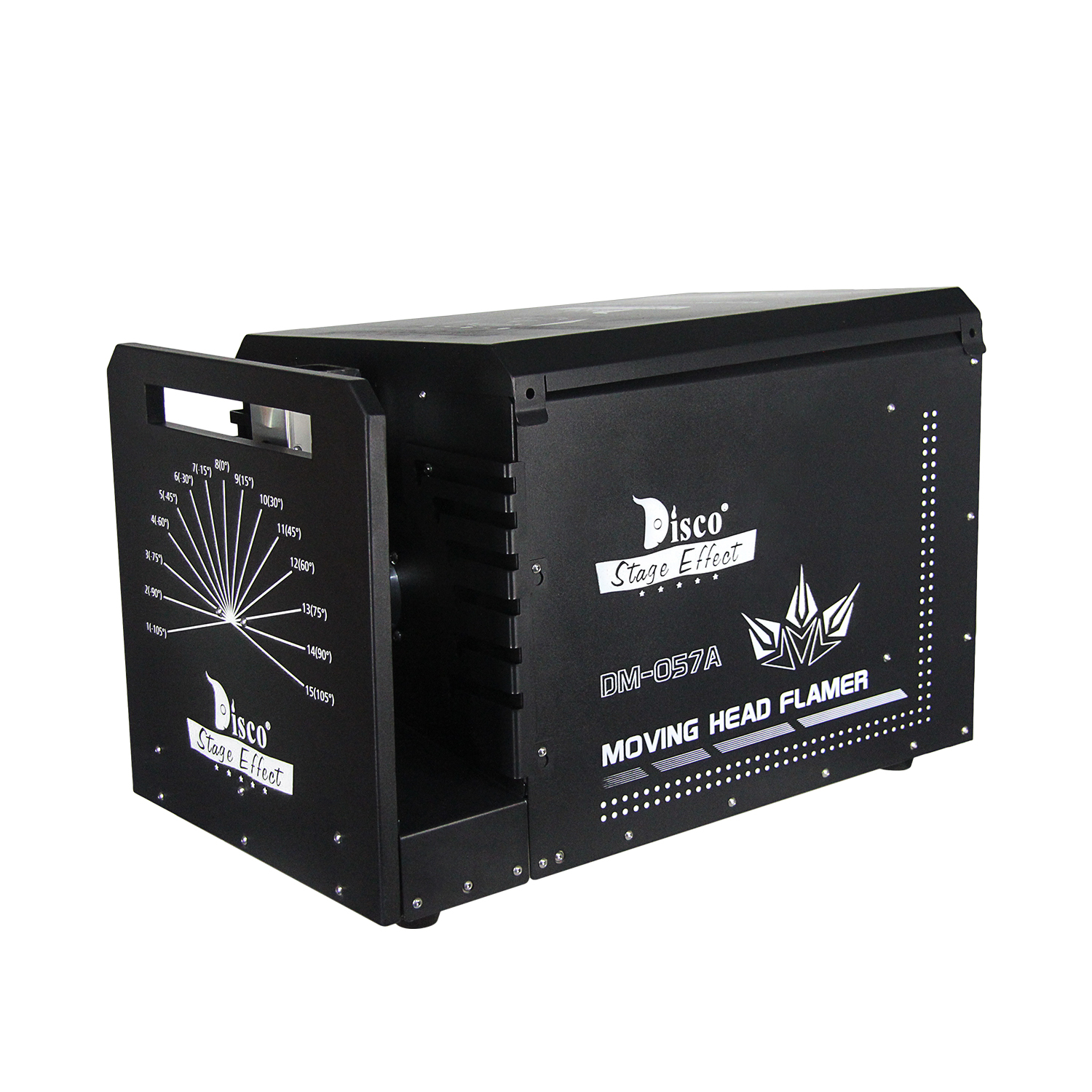

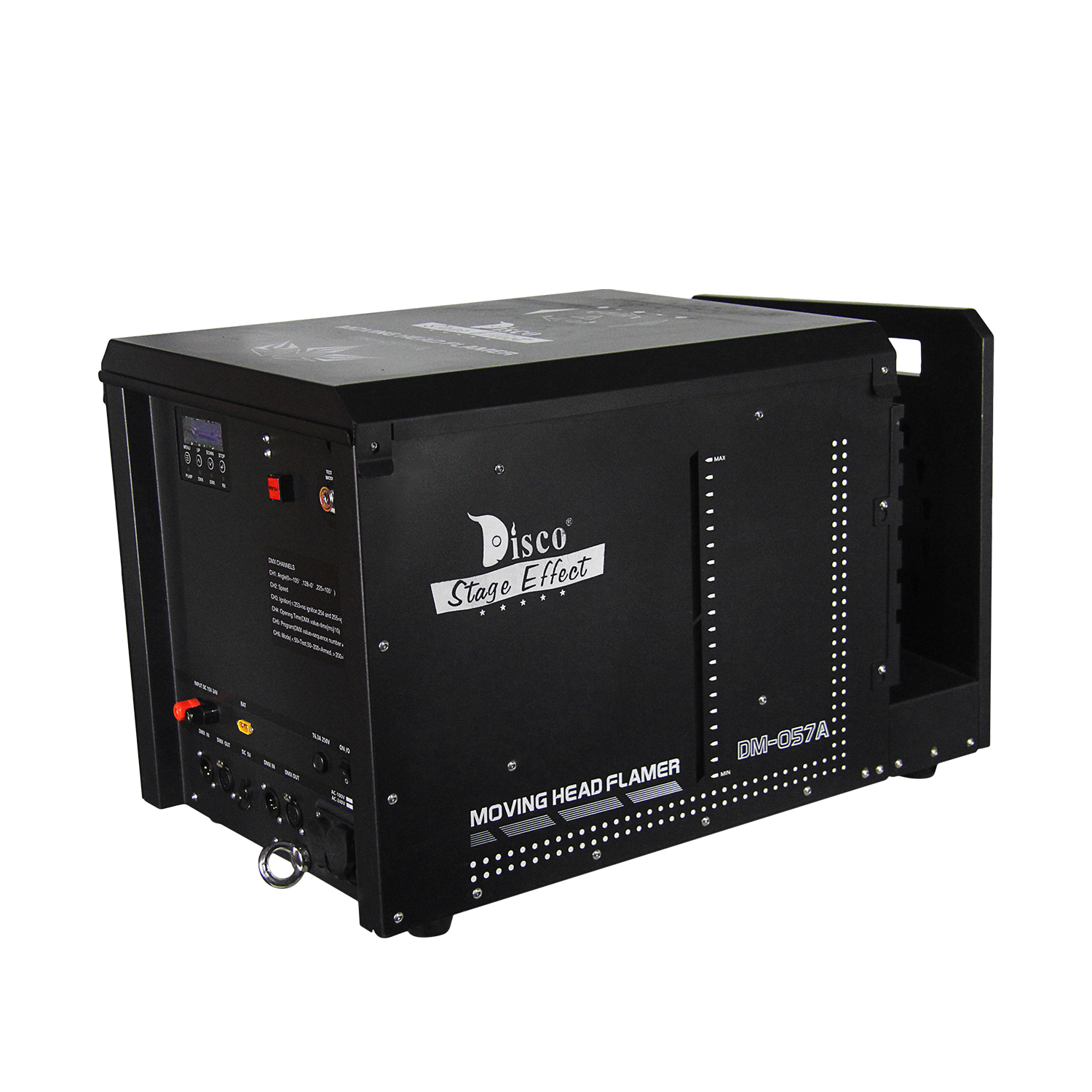

Moving Head Flame Machine
型號 Model: DM-057A
電壓 Voltage: AC110-120V/60HzAC200-240V/50Hz
功率 Power: 320W
噴火高度 Height of flame: 約10米(mi)About 10m
料桶容積 The oil tank capacity: 10L
噴射角度范圍 Spray angle range: 210(+105)
耗油量 Fuel consumption: 60ml/s
控制 Control way: DMX512
機器尺寸 Machine Size: 590x360x370mm(LxWxH)
包裝尺寸 Package Size: 840x420x540mm(LxWxH)
凈重 N.W: 32kg
毛重 G.W: 42kg
- Parameters
型號 Model: DM-057A
電壓 Voltage: AC110-120V/60HzAC200-240V/50Hz
功率 Power: 320W
噴火高度 Height of flame: 約(yue)10米About 10m
料桶容積 The oil tank capacity: 10L
噴射角度范圍 Spray angle range: 210(+105)
耗油量 Fuel consumption: 60ml/s
控制 Control way: DMX512
機器尺寸 Machine Size: 590x360x370mm(LxWxH)
包裝尺寸 Package Size: 840x420x540mm(LxWxH)
凈重 N.W: 32kg
毛重 G.W: 42kg
此機器采用(yong)加厚(hou)防銹鈑金結構,讓其可(ke)以(yi)進(jin)行很好的防水效(xiao)果(guo)。并配備(bei)(bei)傾(qing)斜傳感器,如果(guo)設(she)備(bei)(bei)在任何方向傾(qing)斜超過45度(du),該傳感器將(jiang)被(bei)激活,關閉(bi)噴火(huo)(huo)頭(tou)。最新智能電控系統可(ke)以(yi)進(jin)行壓力監(jian)控,安(an)全提(ti)示,無油監(jian)控,故障報(bao)警等功(gong)能,最高(gao)火(huo)(huo)焰(yan)噴射(she)高(gao)度(du)可(ke)達(da)8-10m(無風條件下),最大旋(xuan)轉噴射(she)角(jiao)度(du)為210(士105)。通過DMX控制(zhi)可(ke)實現多達(da)88種噴火(huo)(huo)組合效(xiao)果(guo),是客(ke)戶舉辦大型活動(dong)的最佳選擇,可(ke)廣泛用(yong)于大型演出,音樂會、體育(yu)賽事、主題活動(dong)等,實現勁爆焰(yan)火(huo)(huo)效(xiao)果(guo),燃爆您(nin)的舞臺(tai)。
This machine adopts a thick rust-proof sheet metal structure,so that it can have a good water-proof effect.lt is also equipped with a tilt sensor.Ifthe device is tilted more than 45 degrees in any direction,the sensor will be activated and the spray head will be turned off.The latest intelligent electronic control system can perform functions such as pressure monitoring,safety promotion,oil-free
monitoring,and fault alarm.The maximum flame jet height can reach 8-10m (under no wind conditions),and the maximum rotary jet degree is 210(105) Up to 88 spray combination effects can be achieved through DMX control.The head-shaking flame machine is the best choice to hold large-scale events.It can be widely used in large-scale performances,concerts,sports events,themed
events,etc.,to achieve the best flame effect and light your stage.
